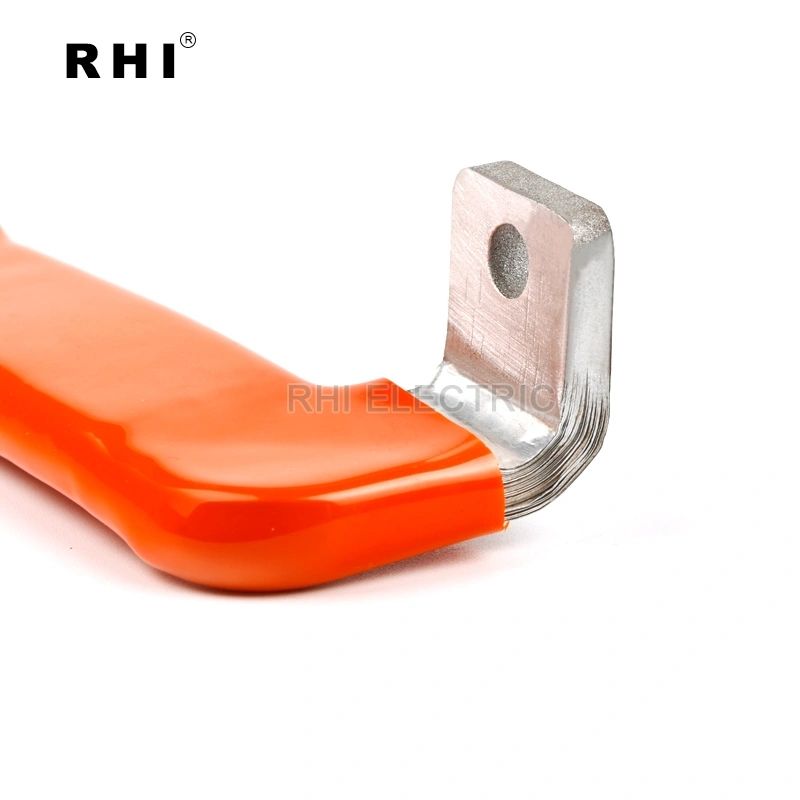

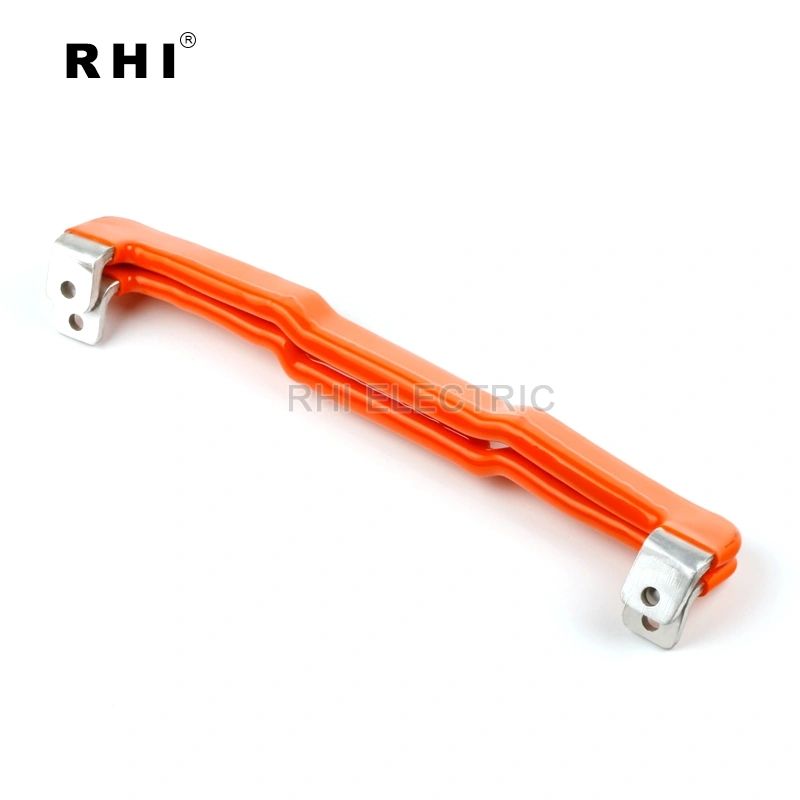

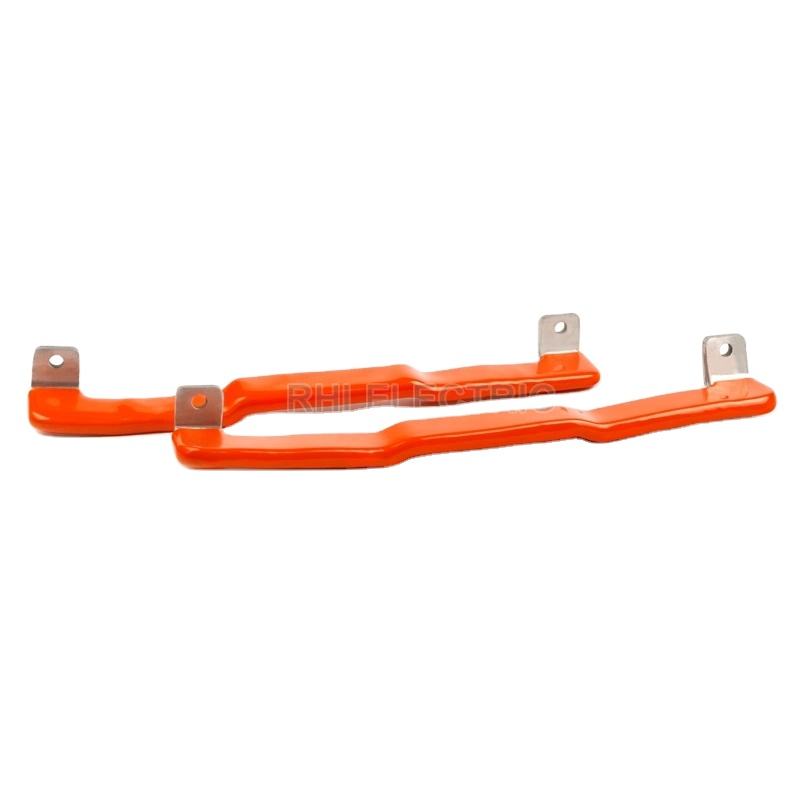

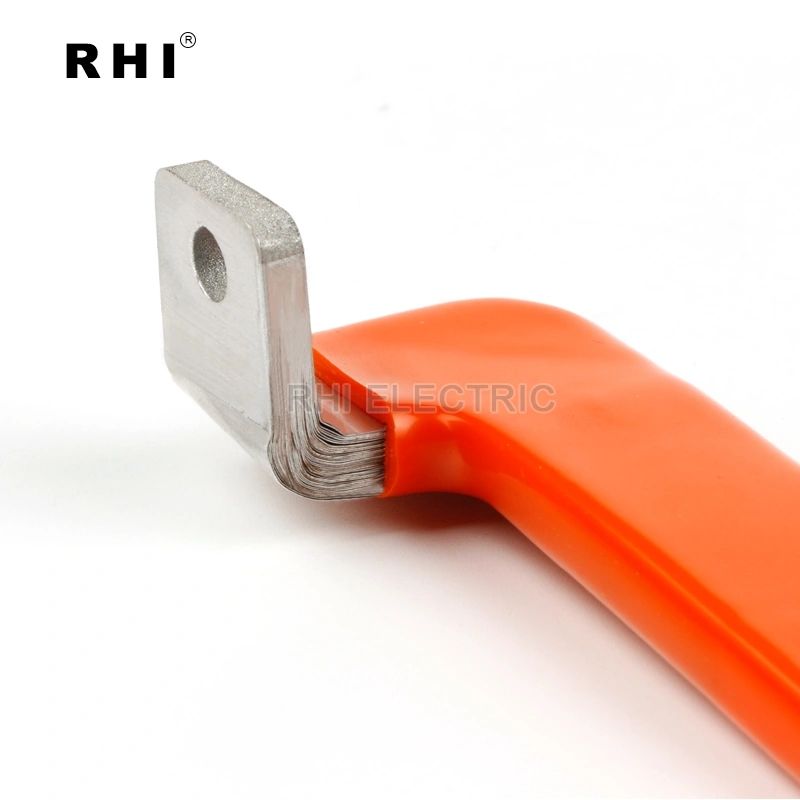

Factory supply bare insulated pvc dipping aluminum bus bar

FOB Reference Price:Get Latest Price
$1.00 - $20.00 / Piece | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$5.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
RHI
Model Number:
aluminum bus bar
Number of Contacts:
>60
Conductor Size:
>30 AWG
Type:
electric logistics vehicle
Item name:
aluminum bus bar
Material:
aluminum
Size:
Various
Plated:
None
Thickness of coating:
3-5μm
OEM:
welcome
PVC dipping:
Yes
Application:
Electric truck
Certificate:
ISO9001,IATF16949
Visting company:
Welcome
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day aluminum bus bar
Packaging & Delivery
Packaging Details
aluminumbus bar
Inner packing : plastic bag with inner box
Outer packing : paper carton with
Port
Ningbo or Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 3 To be negotiated
Product Description

Factory supply nickel coated insulated pvc dipping copper bus bar

Flexible aluminum bus bars are made of aluminum foil thickness from 0.1 to 1mm. They are produced by process of welding, stamping, plating, forming, insulation and so on. The insulation can be pvc dipping and PE heat shrink tubing. Because of it's feature of good conductivity, flexible, easy to install and light weight, flexible busbars are widely used in electric vehicle and electrical suppression in low voltage applications. The primary differences between aluminum and copper bus bar is that aluminum is more cost-effective and lighter weight.Models and sizes can be customized.

Material:

 Aluminum (1060 )

Copper clad Aluminum

Or other materials as customer's request.

Insulation:

Customized Copper Bus Bar for Power Storage Systems

PE, PVC, PA12, PET and Epoxy powder coating

  • PE : Withstand Voltage 2700V AC, Working Temperature -40℃ to 125℃,

    Flame Retardant UL224 VW-1. Used for solid&flexible busbar,  but it can

    not be used for special-shaped products.

  • PVC (Dipping): Withstand Voltage 3500V AC, Working Temperature -40℃

    to 125℃, Flame Retardant  UL94V-0.   Used for solid&flexible busbar, and

    can be used for special-shaped products.

  • Epoxy Powder Coating :Withstand Voltage 5000V AC, Working Temperature

    -40℃ to 150℃, Flame Retardant UL94V-0.  Used for solid busbar.

  • PVC (Extruded): Withstand Voltage 3500V AC, Working Temperature -40℃

    to 125℃, Flame Retardant UL94V-0.  Used for flexible busbar.

  • PA12 (Extruded):Withstand Voltage 5000V AC, Working Temperature -40℃

    to 150℃, Flame Retardant   UL94V-0.  Used for solid busbar.

  • PET: Withstand Voltage 5000V AC, Working Temperature -40℃

    to 125℃, Flame Retardant   UL94V-0.  Used for solid busbar.

Finish: nickel plating, silver plating or customized.
Packing: Blister and wooden box packing to avoild bus bar broken or deformed.
Quotation time: 1-3 days after receiving drawings.
Certificates: ISO9001, ISO14000, IATF16949



Application:

Aluminum busbar is widely used in electric vehicle to lighter weight and it is best utilized for outdoor applications or corrosive, high stress environments.

It is most often used for electrical suppression in low voltage applications, where moderate strength and lightness is required. It’s also ideal for cramped enclosures.

Busbar tester



Testing Capabilities

Test Programs Tester  Standard  Test  Result
Endurance test Endurance meter upon your request
Release force test Universal material testing machine upon your request
Loop resistance,contact resistance test Loop resistance testing equipment upon your request
Temperature rising test Temperature rising tester GB/T14048.1-2000
Electric conductivity test Conductivity tester YS/T478-2005
Salt spray test Salt spraying tester GB/T2423.17-2008
Thermal ageing, heat vibration test Air exchange aging test machine upon your request
Coating thickness test X-ray coating thickness tester upon your request
Voltage drop test Voltage drop tester upon your request
Customer feedback



FAQ

1. Q: Are you factory or trading company?
A: We are factory with 10 year's exporting experience.

2. Q: Where is your factory located?
A: We are located in deyu Road Xiangyang Industrial Zone, Liushi Town,Yueqing City, Zhejiang,China.

3. Q: Can I get sample before making order?
A: We can send you samples if you tell us the model and size you need, or you send us your drawing.

4. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.


5. Q: How long can I get a sample?
A: For standard sample we have in stock, we can send it in 2-3 days.
For customized model, we can send sample within 7-10 days.

6. Q: How do you control your quality of goods?
A: We have inspection department. All goods will be inspected before packing.

Our Services

1.Advanced Technology: We have industry-leading processes and technologies like automatic robot dipping, automatic robot welding, automatic copper forming and 20 years’ experience of busbar insulated dipping technology. With automation equipment and R&D team, we continuously improve our production efficiency and product quality reliability.

2.Efficient Supply Chain: From raw materials to finished products, all processes include mould and fixture are finished in our plant. Only the plating is finished by our supplier near our factory.

3.Superior Service: Give response in 8 hours, arrive at customer’s site to solve problem in 24 hours ( Site outside China may need to be extended).

4.Quick Response: With efficient supply chain and perfect production process, we can provide small batch products in a short time to support early development of customer’s project.

5.Quality Commitment: We are committed to the highest quality standards. Material is tested before production to guarantee it is ETP grade copper.  All goods are inspected before delivery. We have certificates of ROHS, REACH, UL94V-0, ISO14000 and IATF16949.

6.Timely Delivery: Experienced workforce, large production capacity and sound supply chain guarantee timely delivery time for customer.

7.Competitive Price: With efficient supply chain and production environment in China, we have advantage of low cost.
