Tin Coated insulated flat copper bus bar busbar for battery

FOB Reference Price:Get Latest Price
$1.00 - $20.00 / Piece | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$2.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
RHI
Model Number:
bus bar
Application:
battery
Shape:
Square
Length:
can be customized, 100mm or other
Grade:
copper
Cu (Min):
99.99%
Alloy Or Not:
Non-Alloy
Item:
insulated copper bus bar
Size:
Various
Width:
30mm or other
Thickness:
2mm or other
Hardness:
hard
Plate:
Tin plated
Insulation:
PE heat shrink tube
Protective part:
pvc cover
Certificate:
IATF16949,ROHS
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day copper bus bar
Packaging & Delivery
Packaging Details
insulated copper bus bar
First in poly bag,then in carton.Or as your request.
Port
Ningbo or Shanghai

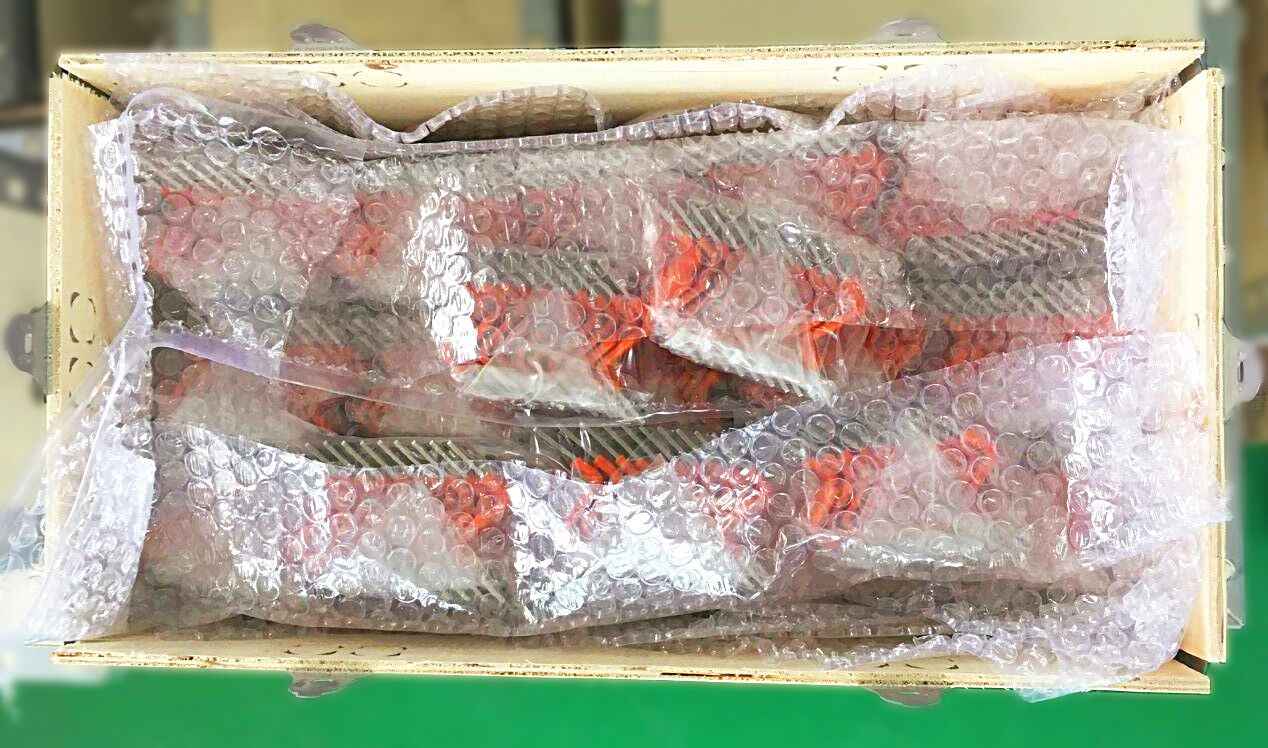

Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 3 To be negotiated
Product Description

Tin Coated insulated flat copper bus bar busbar for battery

Flat copper busbar can be customized in different models and sizes. Material is 99.9% copper with excellent conductivity. The copper bus bars are widely used on battery pack system and new energy system industrial.

Material StandardGB : T2 Copper with Min. 99.9%
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Other Material also can be customized
Resistance
0.00001Ω

Conductivity
57%

Copper busbar thickness1mm-10mm depend on bus bar structure,
we will advise suitable thickness
Insulation MaterialPVC Dipping Coating performs well for special shaped bus bar,which can be put on directly. It is not easy to break when it be bent with many times.
Flame Retardant/Fire ResistanceUL94-V-0 or upon you request
Leakage TestingPVC Dipping Sleeves:
In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
Or upon your working voltage, we advise to choose better solution.
Surface PlatingNickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
or upon customers' request
Salt Spray TestingIn a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending TestingBend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise TestingDepend on flexible busbar cross-sectional area,
We can offer all temperature rising test report before delivery if you request
Operating Temperature
-45 to +150 ºC

Copper busbar Tensile Strength≥500N
Quote TimeQuotation sheet will be sent in 1-3 working days when receive your enqiury
Sample/Trial Order
Delivery Time
In 5 -15 working days according to different bus bar structure and manufacture process
Quality Management StandardMeet Auto Industry IATF 16949
Eco-friendly Certificate
ROHS, REACH






Application

New energy vehicle; Battery packs; Power supply room; Power distribution equipments;

Switchboards;Panel boards; Low and medium voltage switchgear;

Low voltage distribution; High current & control equipment; Busway systems etc

Busbar tester



Testing Capabilities

Test ProgramsTester Standard Test  Result
Endurance testEndurance meterupon your request
Release force testUniversal material testing machineupon your request
Loop resistance,contact resistance testLoop resistance testing equipmentupon your request
Temperature rising testTemperature rising testerGB/T14048.1-2000
Electric conductivity testConductivity testerYS/T478-2005
Salt spray testSalt spraying testerGB/T2423.17-2008
Thermal ageing, heat vibration testAir exchange aging test machineupon your request
Coating thickness testX-ray coating thickness testerupon your request
Voltage drop testVoltage drop testerupon your request
Our Services

 1.Perfect management systems: Implement ISO9001 & IATF16949 and provide PPAP document.

2.Professional sales team:more than 6 year export experience and 24-hour service line to meet customer’s need.

3.Premium quality:test from raw material to packaging and many advanced testing equipments,like temperature tester,electrical conductivity tester.

4.High production efficiency and low cost :10 year experience of production and complete production chain.

5.Highly intelligent production workshop: robot production line and high-precision machines.
