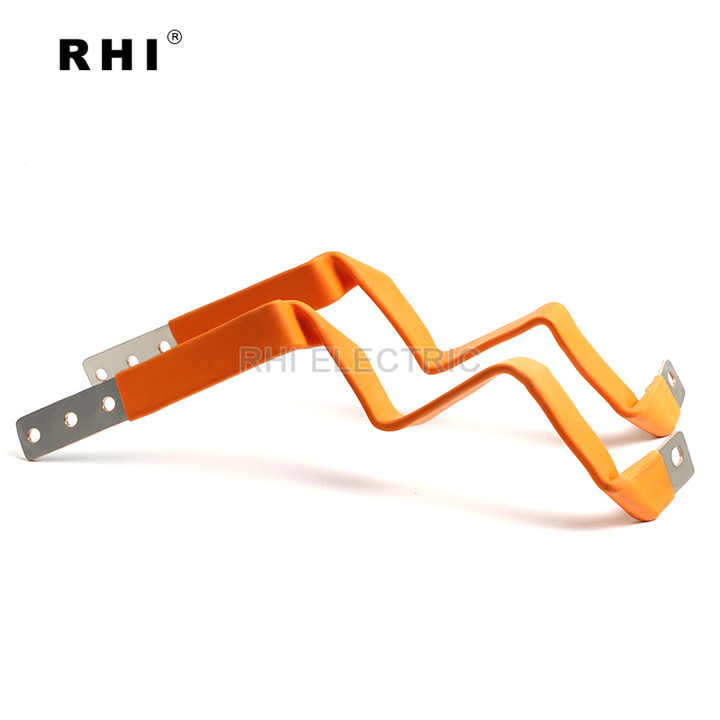

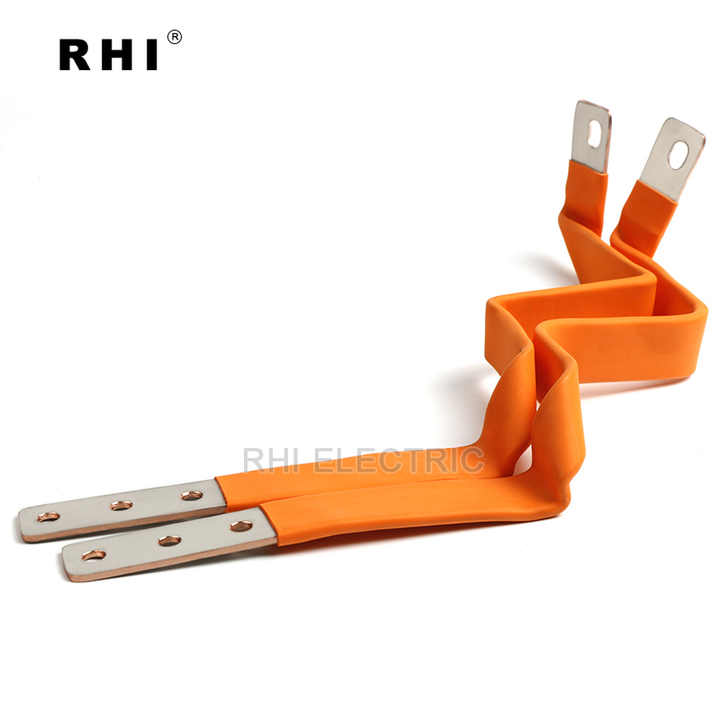

custom nickel plated flexible busbar insulated copper bus bar for electric stackers

RHI specialize in custom designing and manufacturing bus bars for automotive, battery bank, power storage, switch gear etc. Custom bus bars can be plated in tin, nickel or silver to suit specific applications. Our technicians can assist customers in developing product design and develp prototypes from client drawings. With copper bus bars, customers can eliminate wiring errors and reduce assembly costs.

Features

Material Standard :GB : T2 Copper with Min. 99.9% ,DIN: E-Cu58 (Number: 2.0065),EN: Cu-ETP ( Number: CW004A),ISO: Cu-ETP, UNS: C11000, JIS: C1100,BS: C101
Resistance :0.00001Ω
Conductivity :57%
Copper Foil of Single Layer Thickness :0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure
Insulation Material :PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not                                       easy to break when it be bent with many times.

Insulation Performance PE and PVC are good, PVC dipping is better than PE heat shrink tubes
Flame Retardant/Fire Resistance :UL94-V-0 or upon you request

Leakage Testing: PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
                                       In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
Surface Plating :Nickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
Salt Spray Testing: In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending Testing: Bend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise Testing :Depend on flexible busbar cross-sectional area,
                                                We can offer all temperature rising test report before delivery if you request
Operating Temperature :-45 to +150 ºC
Copper Foil Tensile Strength:≥500N
Quality Management Standard Meet Auto Industry IATF 16949

1. Q: Are you factory or trading company?
A: We are factory with 10 year's exporting experience.

2. Q: Where is your factory located?
A: We are located in deyu Road Xiangyang Industrial Zone, Liushi Town,Yueqing City, Zhejiang,China.

3. Q: Can I get sample before making order?
A: We can send you samples if you tell us the model and size you need, or you send us your drawing.

4. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.

5. Q: How long can i get a sample?
A: For standard sample we have in stock, we can send it in 2-3 days.
For customized model, we can send sample within 7-10 days.

6. Q: How do you control your quality of goods?
A: We have inspection department. All goods will be inspected before packing.

7. Q: What's your payment term?
A: For small order, we suggest 100% before production to save time and bank charge.
     For bulk order, payment is 30% TT before production 70% TT before delivery.

8.Q: Do you accept our design or OEM size? Could I print logo/brand on the goods?
A: Yes ,we can do any sizes if you tell us your requirements or drawing, and any logo can be printed.
